Everis® UQD(B)08

See Everis® UQD(B)08 Products

The CPC Everis® UQD(B)08 Series quick disconnect (QD) blind socket and plug with 1/2" flow are designed for large scale liquid cooling. These quick disconnects offer ease of use, reliability, high performance, and resistance to corrosion while maximizing flow for next-gen applications.

  • Optimized for blindmate connections in rack-mounted integrations
  • Manufactured out of corrosion-resistant 304 stainless steel
  • For those seeking products that meet or exceed OCP V2 specifications
  • Made with CPC’s patented valve design, which has been trusted in the world’s top supercomputers for years

Produkte & Downloads

Universal Quick Disconnect (UQD)

Universal Quick Disconnect (UQD)

CPC’s Universal Quick Disconnect (UQD) was developed in collaboration with Intel per OCP specification. Designed by patent-awarded engineers, CPC’s UQD includes features for enhanced reliability and ease of use.

Features Benefits
Non-spill valve design Dry break. Disconnect under pressure with no spills
Redundant seals in connected state Extra protection from leaks
High flow capacity with low pressure drop Efficient, quality cooling system
Threaded terminations Enables server and rack manifold mounting
Designed for OCP interoperability Seamless system integration
Manufactured out of 304 stainless steel Inherently corrosion resistant
V2 design is compatible with prior OCP specifications Design, supply, and assembly simplicity
Designed and manufactured for scale Supply chain assurance

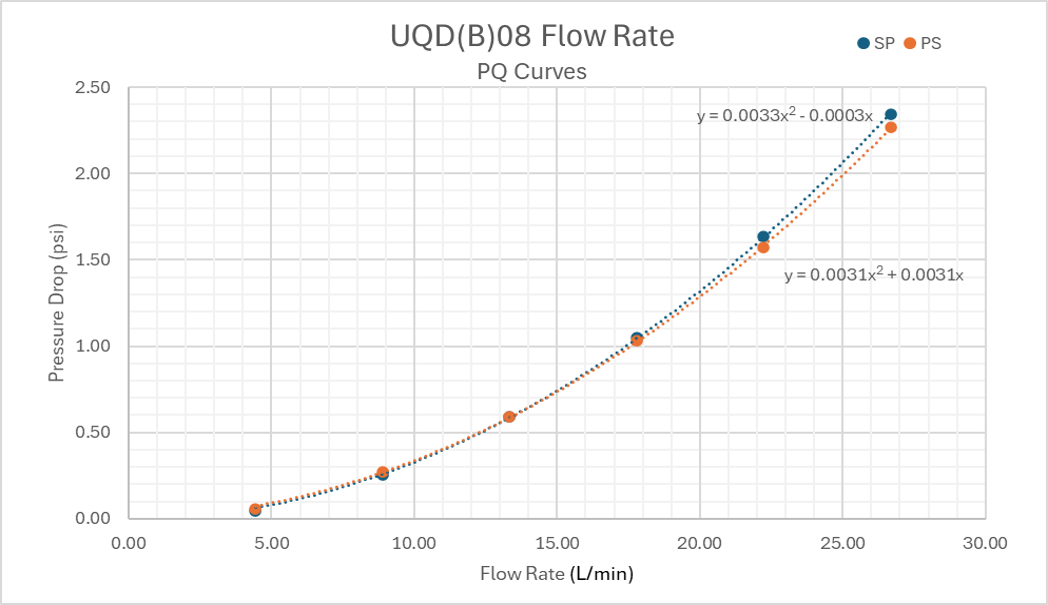

Spezifikationen und CV-Wert

Operating Conditions (Fluid Transfer)

Pressure: Vacuum to 100 psi, 6.9 bar
Operating Temperature Range: 42°F to 149°F (5°C to 65°C)
Shipping/Storage Temperature Range: -40°F to 167°F (-40°C to 75°C)

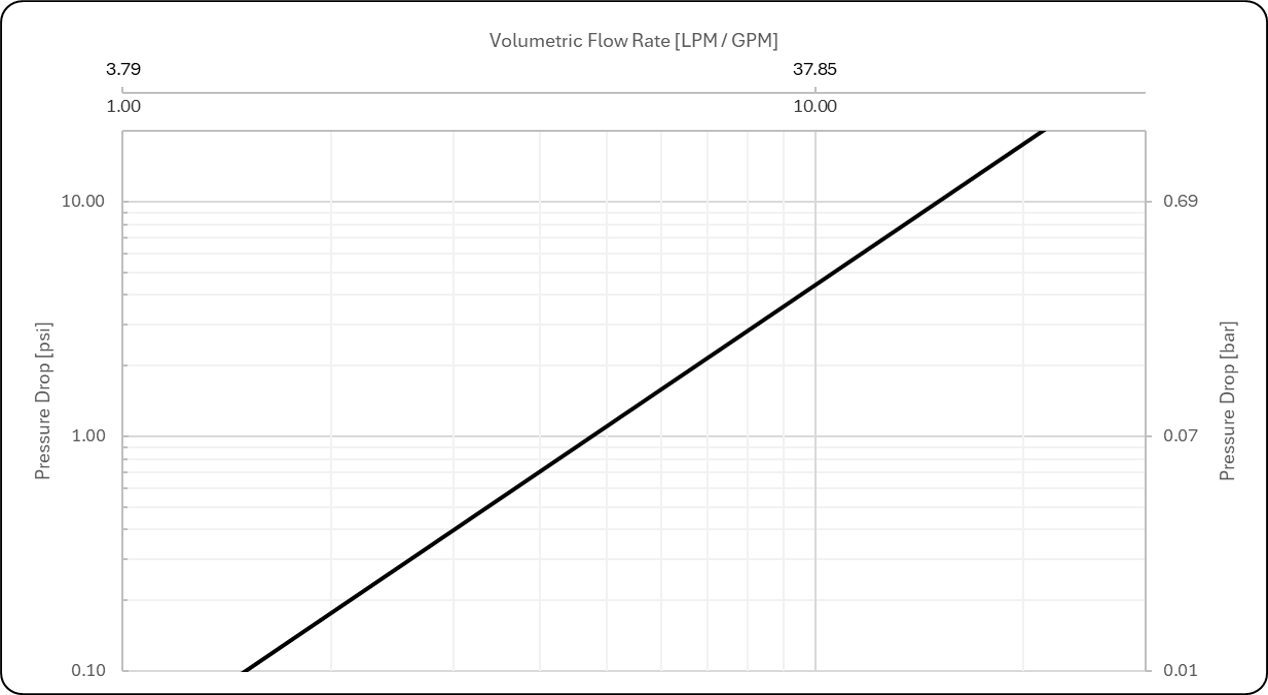

Flow Coefficient: Cv ~4.75 max (4.11 Kv)

Materials

Main housing components: 304 Stainless steel
Valves and thumb latch:  High-performance polymer
Valve spring (wetted): Stainless steel
Seals: EPDM o-rings
Compliance: RoHS, REACH

Other

Color: Metallic
Tubing Sizes: 5/8″ to 3/4", 15.88mm to 19.05mm ID
Thread Sizes: SAE-10, SAE-12
Lubricants: Krytox® PFPE
Spillage: <0.020 cc per disconnect at 0 psi
Inclusion: <0.37 cc per connect



WARNING: TERMINATION SIZE, Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
